The Message Exchange Network System Using Radio Communication

The Message Exchange Network System using by Radio Communication

Overview of the Message Exchange Network System Using Radio Communication

The message exchange network system using radio communication is a message exchange network that can use both satellite and radio communication in order to ensure the continuity of operations. In the event of a fault or failure (individual ship or communication center, etc.) in the real-time satellite-based message exchange network in operation as the main communication network of naval vessels during operations, the system automatically switches to the radio communication network (HF/UHG) by using the communicators in possession.

  • Real-time message exchange network operation in the satellite and WAN/LAN communication sections
  • Switch to radio communication (message exchange system using radio communication) in case of satellite communication failure to ensure continuity of operations
  • Ensuring security by applying compression algorithm and government-class crypto equipment to satellite and radio communication sections

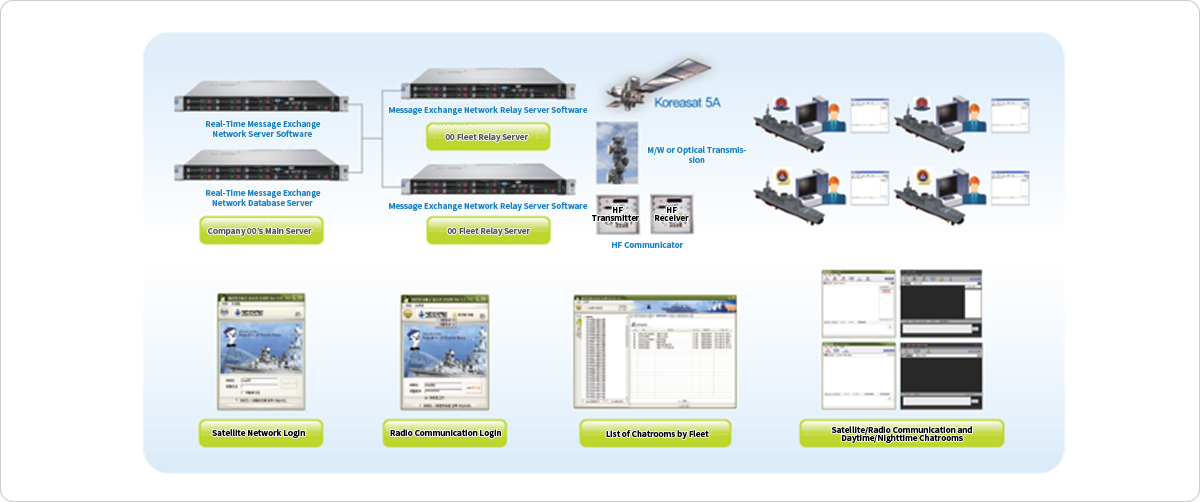

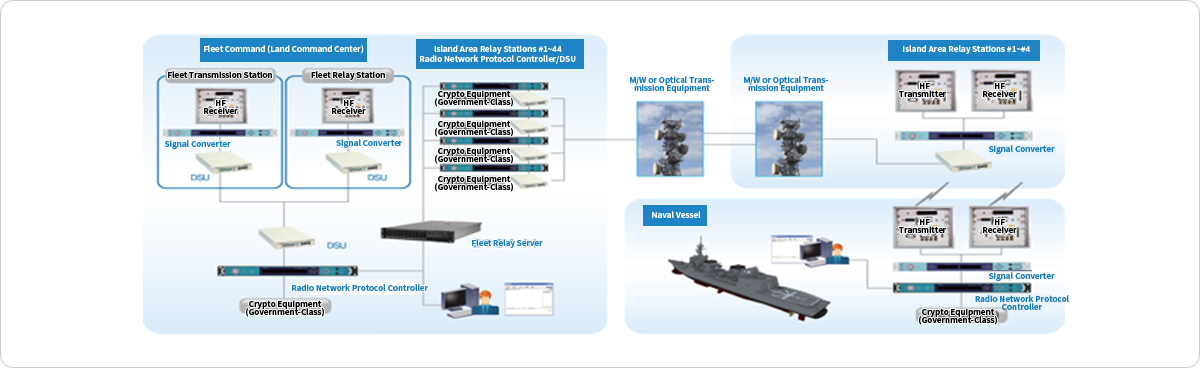

Configuration Diagram of the Message Exchange Network System Using Radio Communication

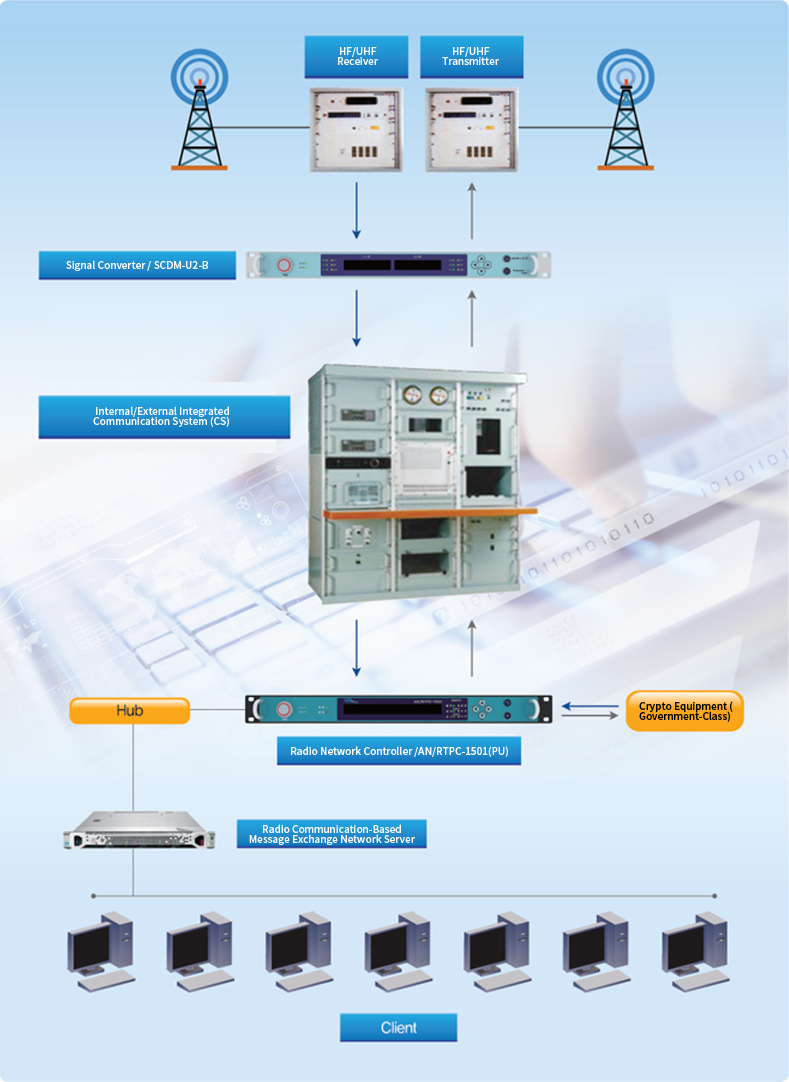

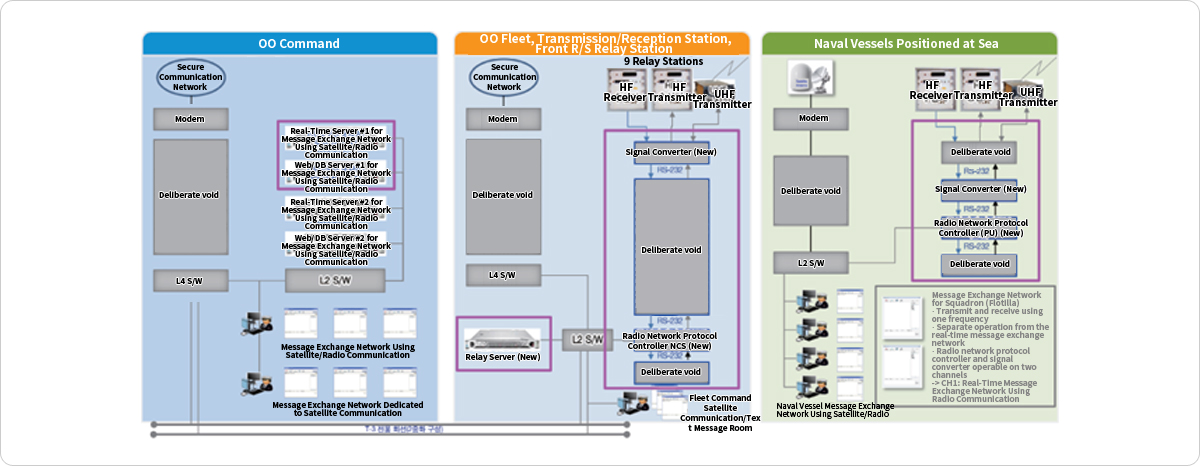

Detailed Configuration Diagram of the Message Exchange Network System Using Radio Communication

Message Exchange Network Software for the Message Exchange Network System
Using Radio Communication

Configuration Diagram of the Message Exchange Network Software

Message Exchange Network Software Specifications

Category Description Note
Hardware
  • Main Server Specification
    • - CPU: 16core (2.4GHz × 2CPU)
    • - Capacity: 600GB × 2 (RAID 0, 1, 5 configuration supported)
    • - OS: Windows Server 2012 R2 & MS SQL
    • - Server Security Software: Red Castle v4.0: EAL 4 class, CC certification
  • Relay Server Specification: Same as above
  • Terminal Specification
    • - General desktop computer or laptop, OS: Windows 2007 or higher
 Can support up to 10,000 simultaneous users
Performance Specifications
  • Satellite/Radio Communication: Automatic/manual connection
  • Chatrooms: Satellite communication only, mixed use of satellite and radio communication, and radio communication only
  • Checked when leaving the network: Displays the communication connection status to check the connections (satellite or wireless) of the naval vessels to the message exchange network and disconnections at the land command posts and on
  • TCP/IP-based terminals
  • Priority Transmission Request
    • - Request priority queue in case of emergency transmission
    • - Request priority queue when requesting priority transmission
  • Prevention of network congestion in the wireless segment: Remove unnecessary chat messages in advance
  • Check omissions of chat content in the radio communication segments
  • 100% maintenance of the network function based on satellite communication
Header & Body: Lightweight design & interconnection between the server and radio network protocol controller (NCS) as well as terminals and radio network protocol controller (PU)
Strengths & Characteristics
  • Normal operation in the satellite and WAN/LAN communication segments
  • Operation of the radio communication-based message exchange network using radio communicators in the event of satellite network failure
GS certified: 16-0182 / Class 1 certified products

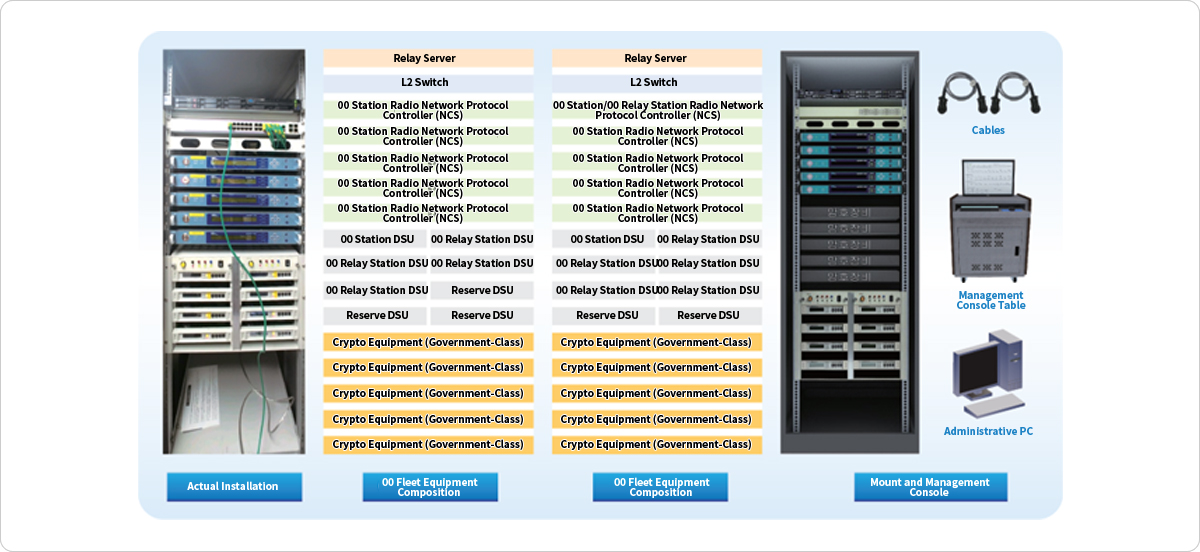

Land Command Posts with Message Exchange Network System Using Radio Communication

Detailed Description of Land Command Posts

Land Command Post System Specifications

Category Description Note
Configuration Specifications
  • 19” Standard Rack: 1EA
  • Relay Server: 1EA / HP DL360G9
  • Server Security: RedCastle 4.0 1EA
  • L2 Switch: 1EA / OS6350-24
  • Radio Network Protocol Controller : 5EA / AN/RTPC-1501(NCS)
  • Integrated DUS: 8EA / BR-DSU153
  • Crypto Equipment (Government-Class): 5EA
  • Dimensions: W(600) * D(1000) * H(2000)
  • Combined Weight Approx. 150kg
NCS is scalable according to the operating environment
Performance Specifications
  • Installed at the land communication command post of each fleet
  • The relay server is synchronized with the main server of Company 00 and 00 fleet is registered as the user
  • Configured between command post – transmission/reception station – island area relay station
  • One-to-one configuration of radio network protocol controller and crypto equipment
  • Network between island areas: M/W or optical transmission equipment
  • In the case of the administrative console, PU configuration in each area of waters responsible and automatic/manual resource assignment
    • - Resource assignment in the method of semi-PAMA
  • Up to 7 PUs configured with the NCS
 Radio Network Protocol Controller -Crypto Equipment: 19.2Kbps
DSU Segment: SYNC 4.8Kbps
Strengths & Characteristics
  • Normal operation in the satellite and WAN/LAN communication segments
  • Operation of the radio communication-based message exchange network using radio communicators in the event of satellite network failure
  • Transmission Reliability: BER10E-6


Island Area Relay Stations with the Message Exchange Network System
Using Radio Communication

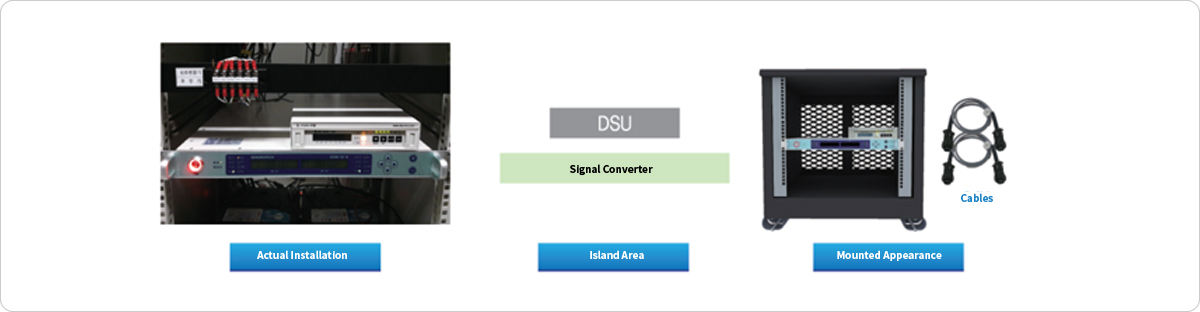

Island Area Relay Station

Island Area System Specifications

Category Description Note
Configuration Specifications
  • Can use a 19” standard rack that has already been installed
  • Signal Converter: 1EA / SCDM-U2-B
  • Communicator and Signal Converter Connection Panel
  • Communicator and Signal Converter Connection Cable
  • DUS: 1EA / BR-DSU153
    • - Can form a network with M/W or optical transmission equipment
  • Weight: Approx. 5kg (signal converter, DSU and cable)
 Forming a network with a land command post with M/W or optical transmission equipment
Connected Communicators
Transmission: URT-310K
Reception: URR-320K
Performance Specifications
  • Installation of a relay station in an island area
  • Transmission/reception with naval vessels and remote transmission to the fleet near the waters under its jurisdiction
  • Main features of the signal converter
    • Supports 2 channels simultaneously (real-time radio message exchange network/radio DMHS)
    • Modulation method: FSK, QPSK, 8PSK (can select for each channel)
    • Speed of communication with the communicator: 300, 600, 1.2k, 1.5k ~ 4.8k (variable in increments of 100bps)
    • Communication speed between the radio network protocol controller and signal converter: 300, 600, 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 56k, 64k
    • Error correction function
    • Radio key on/off control (automatic/manual)
    • Test tone transmission/reception function: 100Hz ~ 4K Hz (variable in increments of 100Hz)
    • FSK mark and space frequency variation function (variable in increments in 25Hz)
    • Self-diagnosis function
    • Loop back function (digital/analog)
    • Supports scalability with other systems (DMHS, etc.)
 DSU:
SYNC 4.8Kbps
Strengths & Characteristics
  • Simultaneous channel configuration with up to 7 radio network protocol controllers (PU)
Island Area Relay Station

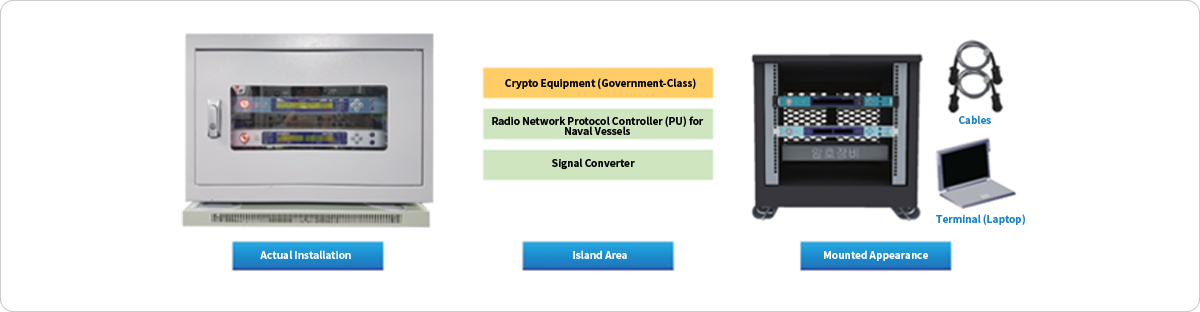

Naval Vessel Message Exchange Network System Using Radio Communication

Naval Vessels

Naval Vessel System Specifications

Category Description Note
Configuration Specifications
  • 19” Rack
  • Radio Network Protocol Controller: 1EA / AN/RTPC-1501(PU)
  • Signal Converter: 1EA / SCDM-U2-B
  • Laptop: 1EA / HGN5-IS20
  • Communicator and Signal Converter Connection Cable
  • Crypto Equipment (Government-Class): 1EA
  • Communicator and Signal Converter Connection Panel
  • DUS: 1EA / BR-DSU153
  • Rack Dimensions: W(600) * D(520) * H(400)
  • Combined Weight: Approx. 70kg
 Connected Communicators

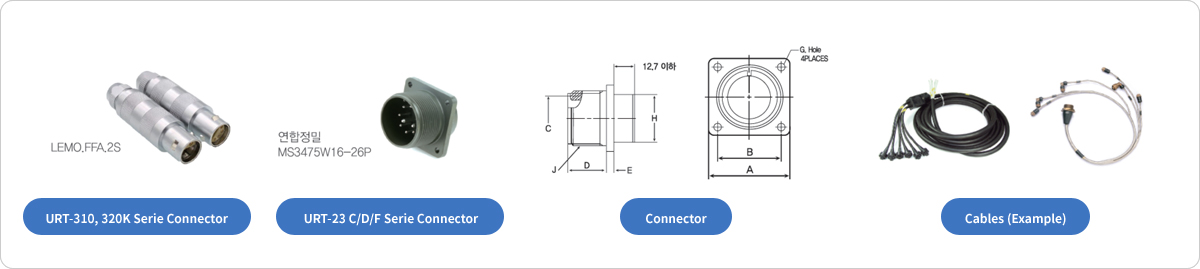

Transmission: URT-310K, URT23C/D/F
Reception: URR-320K,
RF-505R/V
Performance Specifications
  • Operated on naval vessels of PKG class or higher
  • Access via the corresponding frequency of each relay station in the island area near the waters in its jurisdiction
  • One-to-one configuration of radio network protocol controller and crypto equipment
  • Channels in operation: 2CH
  • Signal converter modulation method: FSK, QPSK, 8PSK
  • Speed of communication with the communicator: 300, 600, 1.2k, 1.5k ~ 4.8k
  • Resource allocation in the method of PAMA or DAMA
  • Error correction function and self-check function (BIT)
  • Multi-session (radio, TCP/IP) control and management
  • Multi-channel (2 or more channels) management
  • Priority queue for radio network by radio network protocol controller
Radio Network Protocol Controller -Crypto Equipment: 19.2Kbps
Strengths & Characteristics
  • Up to 5 terminals can be connected to 1 PU
  • Can enter up to 3 chatrooms per terminal
 00 Fleet naval vessels

Radio Communication-Based Message Exchange Network System Equipment Specifications

Equipment Specifications

Equipment Server

Main Server & Relay Server

Windows Series Server
  • CPU: 16core (2.4GHz × 2CPU)
  • Memory: DDR4 64GB
  • Capacity: 600GB × 2 (RAID 0, 1, 5 configuration support)
  • Network Card: 1GB Ethernet 4port
  • Power: Power Supply Kit × 500W 2 EA (power redundancy)
  • ODD: DVD ROM Drive (built-in)
  • OS: Windows Server2012 R2
  • Server Security Software: Red Castle v4.0: EAL 4 class, CC certified products
Equipment Producer Code Model Manufacturer

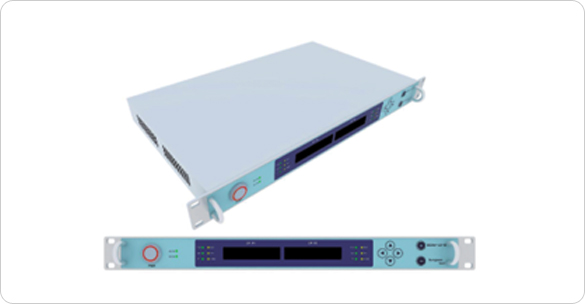

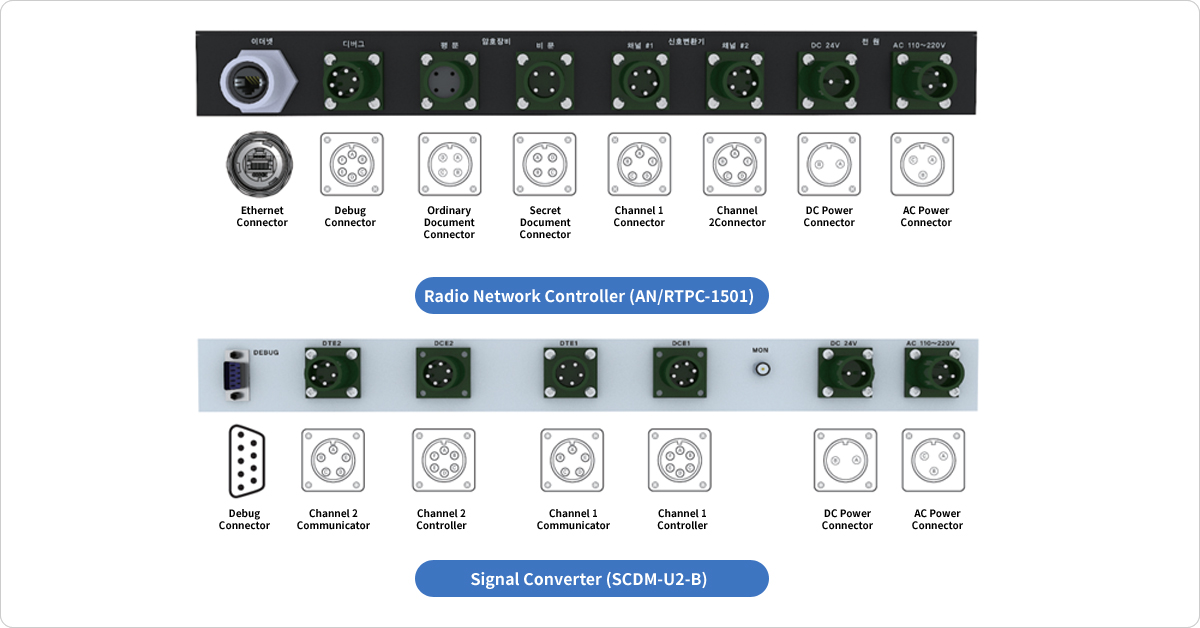

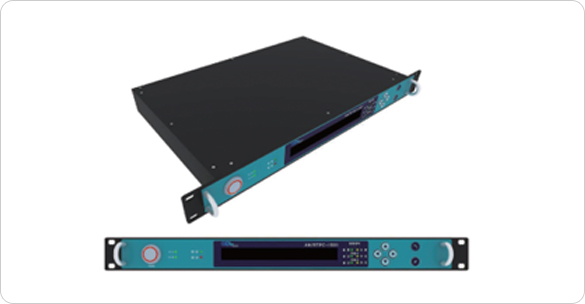

Radio Network Protocol Controller 959EF AN/RTPC-1501(NCS) GDL System Inc.
  • Processor: 32bit MPC83XX
  • Operating Clock: 417MHz
  • Flash Memory & Memory: DDR2 128MB
  • Hardware Inspection Port: Provided
  • Ethernet: 100Mbps 1Port
  • Network protocol: TCP/IP
  • Signal Converter Channel/Transmission Speed: 2 channels / 0.3 ~ 64 kbps
  • Crypto Equipment Channel/Transmission Speed: 2 channels / 19.2 kbps
  • Main Features
    • - Assignment of radio communication resources in the methods of PAMA and DAMA
    • - Error correction function and self-check function (BIT)
    • - Media access control (MAC)
    • - Link layer control (LLC)
    • - Multi-session (radio, TCP/IP) control and management
    • - Multi-channel (2 or more channels) management
    • - Priority queue for radio network by radio network protocol controller
  • Power: AC 110/220V, DC 24V (parallel operation possible)
  • Size/Weight: 19-inch rack (W482×H44.5×D283) / 2.8kg
  • Operating Temperature/Humidity Range: 0℃ ~ +50℃ / 20% ~ 80%
  • Storage Temperature: -40℃ ~ +85℃
  • Shock/Vibration: MIL-S-901D / MIL-STD-167-1A
  • KC for broadcasting communicator materials, etc. (electromagnetic conformity)
Equipment Producer Code Model Manufacturer

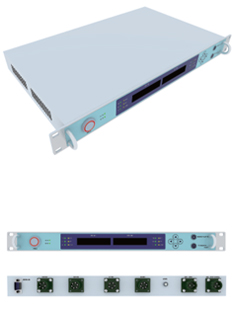

Signal Converter
(Modem)		 2S27F SCDM-U2-B GDL System Inc.
  • Number of channels: 2 channels
  • Modulation method: FSK, QPSK, 8PSK (can select for each channel)
  • Communication speed: DTE I/F (radio network protocol controller): 300, 600, 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 56k, 64k
  • DCE I/F (radio equipment): 300, 600, 1.2k, 1.5k ~ 4.8k
  • Interface between radio network protocol controllers: RS-232 serial communication
  • Transmission speed: 300, 600, 1200, 2400, 4800, 19.2K, 56K, 64K
  • Transmission/reception level adjustment: -20 ~ +10dB
  • Features
    • - Error correction function
    • - Radio key on/off control (automatic/manual)
    • - Test tone transmission/reception function: 100Hz ~ 4K Hz (variable in increments of 100Hz)
    • - FSK mark and space frequency variation function (variable in increments in 25Hz)
    • - Self-diagnosis function
    • - Loop back function (digital/analog)
    • - Supports scalability with other systems (DMHS, etc.)
  • Power: AC 100 ~ 240V, DC 24V (no polarity) parallel operation
  • Size/Weight: 19-inch rack (W482×H44.5×D313) / 2.8kg
  • Operating Temperature/Humidity Range: 0℃ ~ +50℃ / 20% ~ 80%
  • Storage Temperature: -40℃ ~ +85℃
  • Shock/Vibration: MIL-S-901D / MIL-STD-167-1A
  • KC for broadcasting communicator materials, etc. (electromagnetic conformity)
Equipment Producer Code Model Manufacturer

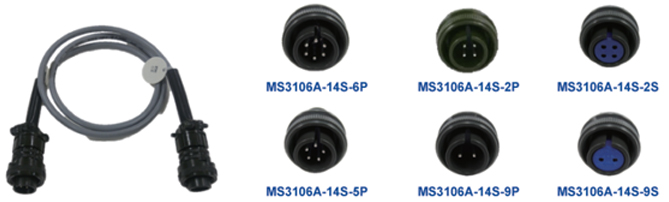

Signal Converter - Radio Network
Controller Connection Cable		 959EF DTE-5P-M GDL System Inc.
Communicator - Signal
Converter Connection Cable		 959EF DCE-6P-M GDL System Inc.
Equipment Producer Code Model Manufacturer
Modem
(Digital DSU)		   BR-DSU153 -
  • Data speed: SYNC: 2400/4800/9600/19200/38400/56000/64000bps
  • ASYNC: 2400/4800/9600/19200/38400/56000/57600/64000bps
  • Transmission Clock Synchronization: Dependent synchronization (LOOP, DDS network synchronization), self-synchronization, external synchronization
  • Power: AC 110/220V, DC 24/48V, parallel operation possible
  • Data Transmission Speed Tolerance: Within ± 0.01% of each transmission rate
  • Transmission Output Waveform: Binary serial bipolar
  • Power Consumption: 7W or less (AC 220V), 13W or less (AC 110V)
  • Size: W205 x D300 x H47
  • Line Impedance: 135Ω ±10%
  • EIA-232D(SYNC/ASYNC): - 2400~64000bps
  • ITU-T V.35(SYNC/ASYNC): - 2400~64000bps
  • KC for broadcasting communicator materials, etc. (electromagnetic conformity)
Equipment Producer Code Model Manufacturer

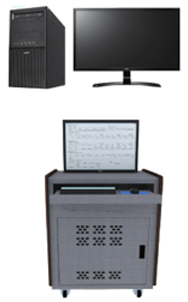

Management Console   Production Specification -
Monitor   27-inch -
Console   Production Specification GDL System Inc.
  • Desktop PC
    • - CPU: i5-6600(3.3GHz)
    • - Memory: DDR4 8G
    • - SSD: 256 GB
    • - ODD: DVD-ROM (removal of writing function)
    • - VGA: Intel HD Graphics 530
    • - Keyboard/Mouse: Wireless keyboard/mouse provided
    • - OS: Windows 7 Enterprise
  • Monitor
    • - Screen Size: 27-inch monitor (68.5cm)
    • - Panel: LED / IPS
    • - Screen Ratio: 16:9, Resolution: 3840×2160 (UHD)
  • Console
    • - Equipped with monitor elevation function

Radio Network Protocol Controller (AN/RTPC-1501)

  • Application of data compression/decompression technology using the narrow bandwidth of HF/UHF radio communication equipment
  • Transmission speed: 1.2 ~ 4.8Kbps
  • Supports 2 channels simultaneously
  • Signal converter and crypto equipment interconnection
  • Communication network management function
  • Communication synchronization
  • Detection and correction of errors in transmitted data

Signal Converter(SCDM-U2-B)

  • Application FSK/QPSK/8PSK modulation and demodulation technology
  • RTPC and radio transmitter/receiver interconnection
  • Supports 2 channels simultaneously
  • Radio key on/off control (manual and automatic)
  • Reed Solomon error correction
  • AC and DC dual power input
