Man Overboard Identification Device by LPWAN LoRa Communication
1OMNI Antennas and G/W are installed on the left and right sides of the mast
to secure a distance of more than 10km and operational safety

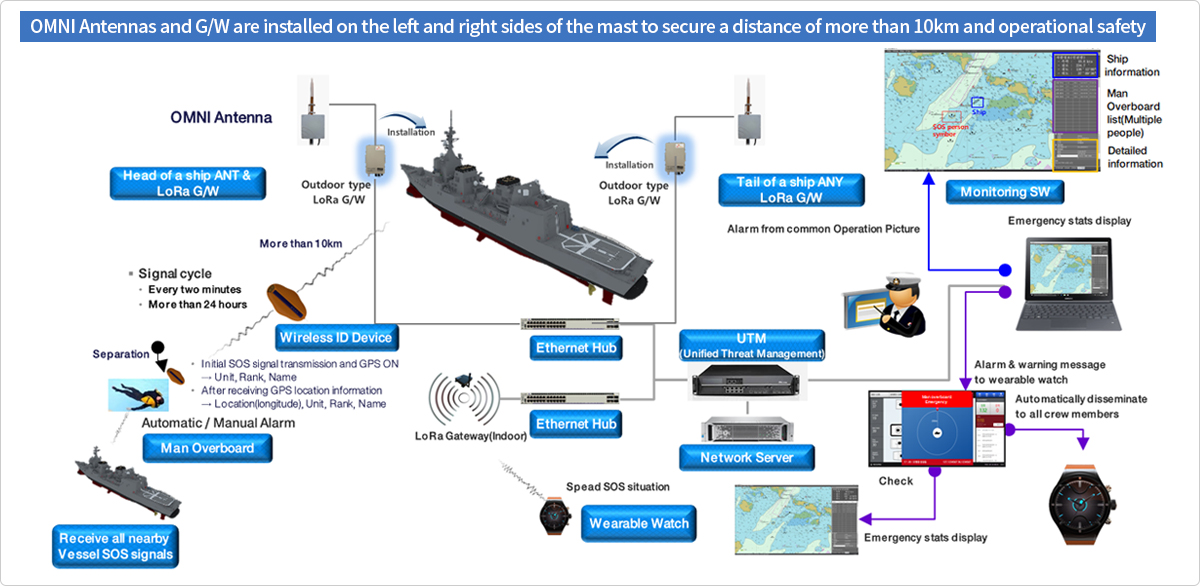

Operation concept & configuration of MOID(Man Overboard Identification Device )
Operational Scenario
- Initial SOS Alarm Occurred
SOS signal Propagation(Location, Unit, Rank, Name) - After recognition at Bridge
Spread SOS situation alert around & rescue live - Display location, distance and ETA information
※Every two minutes, Operating for more than 24hours
※Transmission distance: about 10km

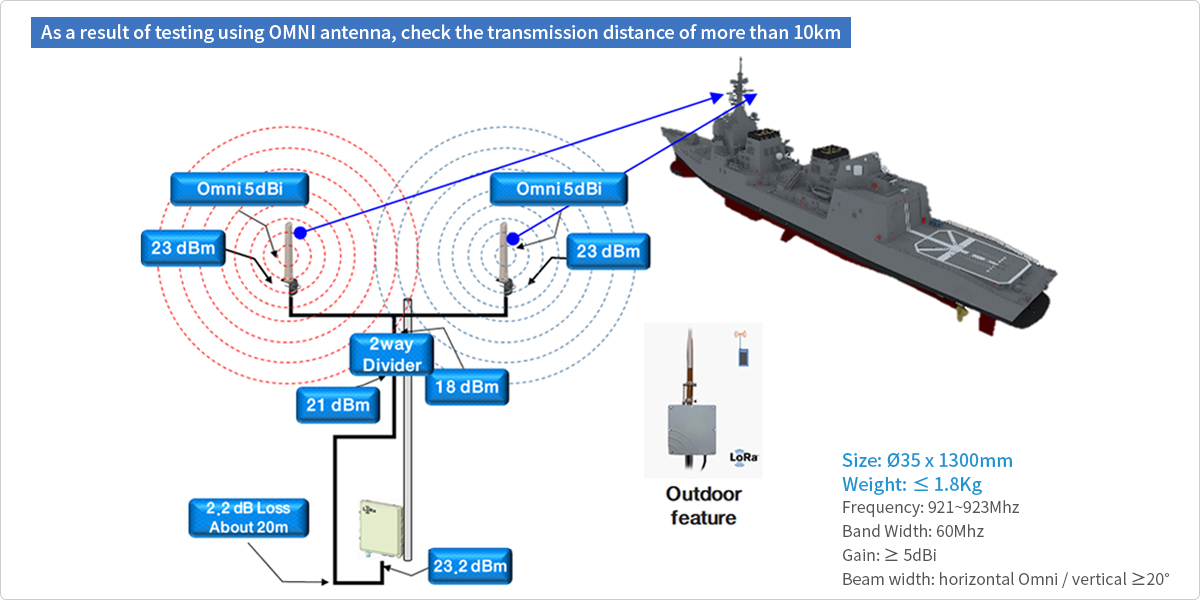

Antenna & Gateway installation

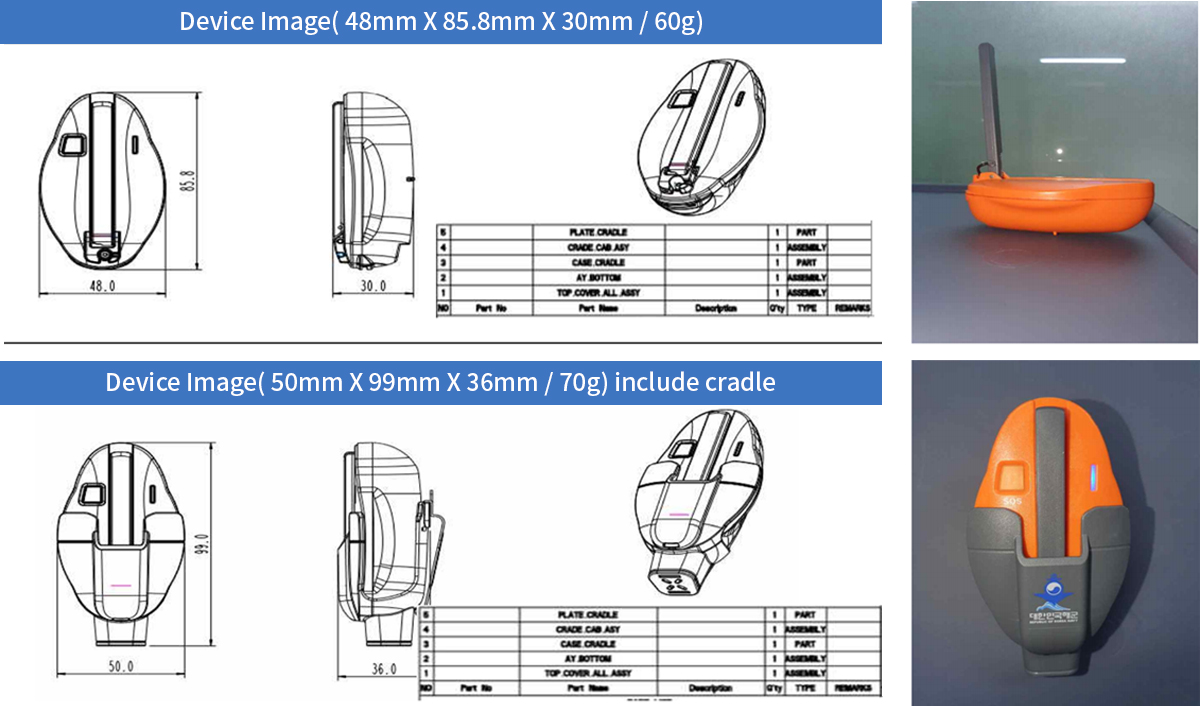

Device feature
Specification
| Model | SCF-200 |
|---|---|
| Acthentication | R-R-2SP-2CF-200 |
| Size / Weight | 48mm x 85.8mm x 30mm / 60g |
| Color | Device : Orange color / Cradle : Grey color |
| Mounting form | Necklace & Clip fixed type |
| Operating time | More than 24 hours after operation |
| Battery | CE17450 replacement type 2,400mAh |
| Management method | Standby : Device status report once a month Running : More than a year(May vary depending on the environment of use) |
| Transmission distance | More than 10km (May vary depending on weather, sea condition) |
| Operation temperature | -20 ~ +50℃ |
| Frequency band | 920MHz band(LoRa) |
| Dustproof / Waterproof | IP67 |
| Corrosion protection | Use SUS stainless steel(external exposed parts) |
| GPS Performance | Precision within 50 m error range |
Display of Common Operation Picture
Key Features
-
Electronic Marine chart
S-52 Presentation Library apply
Compliance with international standards
Provides visibility of terrain information and map color settings
-
Crew Management
Provides UI that can manage more than 20,000 crew members AES-256 Encryption/Decode
-
Device Management
Provides device management and crew vent management UI
Provides real-time device status display UI
-

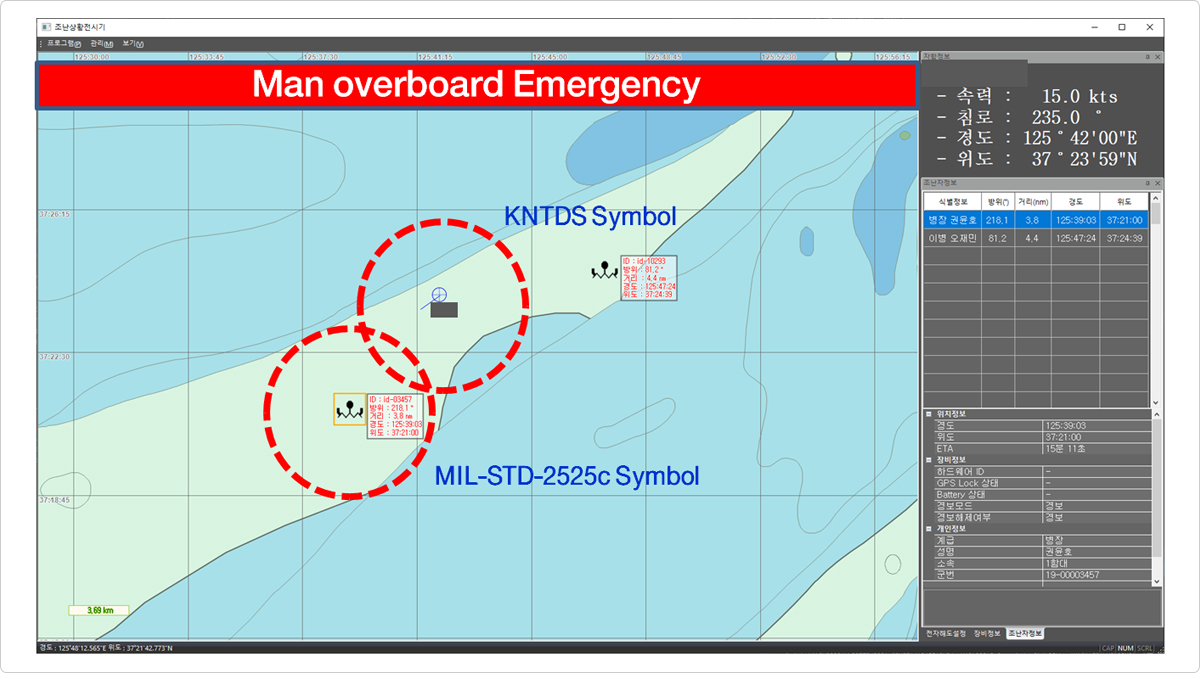

Man overboard display
Provides symbol display function within the list of victims and the marine chart Character/sound warning alarm and ETA display function in case of SOS situation
-
Convenience features
Usage log management fuction
System login and account management fuction
